How to Build a Zero-Downtime Industrial Network？

In the high-stakes world of modern manufacturing, every second of connectivity matters. A single minute of unplanned downtime can cost a factory thousands of dollars. Achieving a zero-downtime industrial network is the ultimate goal for system engineers. This requires a strategic blend of hardware, protocols, and architecture.

Reliability begins at the physical infrastructure level of the facility. Standard networking equipment often fails in harsh industrial environments. High temperatures, dust, and vibration are common threats on factory floors. Consequently, you must choose specialized gear designed for these extreme conditions.

A zero-downtime industrial network relies on rapid recovery and complete redundancy. If one communication path fails, the system must switch instantly. This transition should occur without losing a single data packet. We will explore the critical steps to achieve this resilience.

The Financial and Operational Impact of Network Downtime

The financial cost of network failure is staggering for modern enterprises. Recent data from the Aberdeen Group shows average downtime costs reach $260,000 per hour. For automotive or semiconductor plants, these figures are often significantly higher. A zero-downtime industrial network mitigates these massive financial risks effectively.

Beyond the immediate money loss, system availability is a safety concern. In chemical processing, a loss of control can lead to disasters. Real-time monitoring prevents hazardous leaks and dangerous high-pressure build-ups. Constant connectivity ensures that emergency shut-down systems remain active and responsive.

Data integrity is another vital reason for maintaining continuous network uptime. Smart factories rely on constant data streams for AI-driven analytics. Any gap in data collection can ruin predictive maintenance models. Therefore, building a zero-downtime industrial network protects your digital transformation strategy.

Factor	Commercial Network	Zero-Downtime Industrial Network
Recovery Time	30 to 50 seconds	Less than 50 milliseconds
Operating Temperature	0°C to 40°C	-40°C to 75°C
Vibration Resistance	Minimal	High (IEC 60068-2-6)
Power Supply	Single AC Input	Redundant Dual DC Inputs
Cooling Method	Internal Fans	Fanless Conduction Cooling

How to Design a Physical Layer for a Zero-Downtime Industrial Network

The foundation of a stable network is high-quality physical hardware. You must prioritize equipment that features fanless designs and metal housings. These attributes prevent failures caused by dust or mechanical vibrations. Fanless cooling reduces the number of moving parts that could break.

Selecting Ruggedized Hardware for Harsh Environments

Managed industrial switches are essential for any resilient network project. They allow for the configuration of redundancy protocols and traffic management. Unmanaged switches lack the intelligence to handle complex loop protection. Managed versions provide remote diagnostic tools to identify potential issues early.

For heavy-duty applications, use automation industry switches that support industrial-grade protocols. These devices are optimized for Profinet, EtherNet/IP, and Modbus TCP traffic. They ensure that time-critical control packets receive the highest priority. This prevents latency-related system trips during high traffic periods.

Maintaining Signal Integrity with Repeaters

Signal strength is equally important across large-scale industrial facilities. If your cables run near high-voltage motors, interference will likely occur. Using industrial ethernet repeaters helps maintain signal integrity over long distances. These devices provide galvanic isolation to protect equipment from surges.

Electromagnetic interference (EMI) is a silent killer of industrial networks. Shielded twisted pair (STP) cabling is mandatory in noisy environments. High-quality repeaters can regenerate signals before they degrade below readable levels. This ensures that every command reaches its destination without errors.

Environmental hardening must extend to the power supply units. Power failure is a leading cause of industrial network outages. Always select hardware that offers redundant dual DC power inputs. If one power source fails, the second takes over instantly.

Implementing Redundancy Protocols for Seamless Failover

Redundancy is the core mechanism of a zero-downtime industrial network. Traditional protocols like Spanning Tree (STP) are often too slow. STP can take nearly a minute to re-converge after failure. In a high-speed production line, such a delay is unacceptable.

Understanding Ring Topologies and MRP

The Media Redundancy Protocol (MRP) is the standard for ring topologies. It can achieve a recovery time of less than 20 milliseconds. This speed is fast enough to keep PLC communications active. Most high-performance switches support MRP as a standard feature today.

Ring topologies are popular because they reduce cabling costs significantly. You only need one extra cable to close the network loop. If any single cable breaks, the traffic flows the other way. This simple change drastically improves the uptime of your zero-downtime industrial network.

Zero-Millisecond Recovery with PRP and HSR

For mission-critical tasks, the Parallel Redundancy Protocol (PRP) is necessary. PRP sends two identical packets over two independent network paths. If one packet is lost, the receiver uses the second instantly. This results in zero-millisecond recovery time during a network failure.

High-availability Seamless Redundancy (HSR) is another high-performance protocol for ring networks. Like PRP, it duplicates every frame to ensure delivery. These protocols are common in power substations and railway signaling. They provide the ultimate protection for a zero-downtime industrial network.

Configuring these protocols requires managed switches with hardware-based processing. Software-based redundancy often adds too much latency for real-time control. Always verify that your switch hardware supports these standards at the silicon level. This ensures the fastest possible failover times during emergencies.

Environmental Stress and Predictive Maintenance Strategies

Hardware for a zero-downtime industrial network must resist extreme stress. Standard electronics fail when exposed to high humidity or corrosive gases. Look for devices with IP40 or higher protection ratings. Conformal coating on internal boards adds another layer of moisture protection.

Mounting choices also influence the long-term reliability of your networking gear. DIN-rail mounting is standard for industrial cabinets to resist vibration. Ensuring proper grounding of the switch chassis prevents electrostatic discharge damage. These installation details are vital for a zero-downtime industrial network.

Proactive monitoring is the final piece of the uptime puzzle. Simple Network Management Protocol (SNMP) allows you to track port status. Sudden spikes in error rates often indicate a failing cable connector. Detecting these signs early prevents a minor issue from becoming a crash.

Modern automation industry switches often include Digital Diagnostic Monitoring (DDM). DDM tracks the health of fiber optic links in real-time. It monitors temperature, voltage, and laser output power within transceivers. This data allows technicians to replace components before they actually fail.

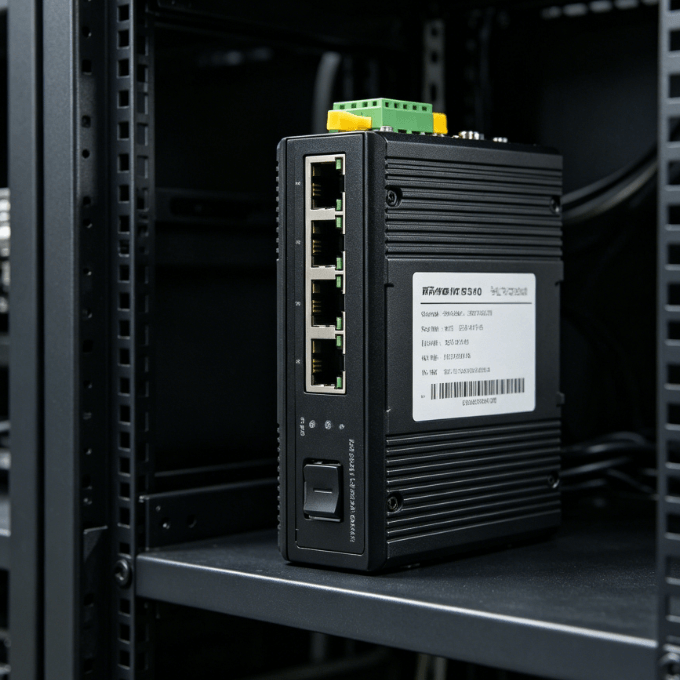

Choosing the Right Components for Your Network Infrastructure

Selecting the right equipment is the most critical decision for any engineer. You must evaluate whether a device meets your specific floor demands. The first step is checking the Mean Time Between Failures (MTBF) rating. A high MTBF indicates superior manufacturing quality and long-term reliability.

Evaluate the protocol compatibility of your industrial switches before any purchase. If you run synchronized motion control, you need Precision Time Protocol (PTP). Without it, machines may lose synchronization during high traffic loads. Always verify that the switch can handle the full wire-speed.

Distance and isolation are the next judgment criteria for your network build. Signals must travel hundreds of meters through noisy industrial areas. Standard copper cables often fail to provide the necessary reliability here. Using industrial ethernet repeaters can bridge these gaps safely.

Finally, consider the management interface of your selected hardware. Can they be managed via a web interface or centralized software? Remote management is non-negotiable for large-scale deployments across multiple buildings. Proper management ensures your zero-downtime industrial network remains visible and stable.

Summary

Building a zero-downtime industrial network requires combining ruggedized hardware with high-speed redundancy protocols. By utilizing managed switches and signal-boosting repeaters, you eliminate single points of failure. This strategy ensures continuous production, protects expensive machinery, and maximizes your facility’s overall operational efficiency for many years.

FAQ

1. What is the fastest redundancy protocol for industrial networks?

The Parallel Redundancy Protocol (PRP) is the fastest because it offers zero-millisecond recovery. It achieves this by sending duplicate data packets over two separate network paths simultaneously.

2. Why are commercial switches unsuitable for a zero-downtime industrial network?

Commercial switches lack the hardware hardening required to survive extreme temperatures and vibration. They also lack specialized industrial protocols like MRP or HSR that are needed for fast failover.

3. How do industrial ethernet repeaters prevent network downtime?

They boost signal strength over long distances and provide vital electrical isolation. This prevents signal degradation and protects the network from high-voltage surges in industrial environments.

4. What temperature range should industrial hardware support?

A zero-downtime industrial network typically requires hardware rated for -40°C to 75°C. This wide range ensures stability in unconditioned cabinets or near high-heat machinery.

5. Can I achieve zero downtime with unmanaged switches?

No, unmanaged switches cannot handle redundancy protocols or traffic prioritization effectively. You must use managed switches to configure the loops and failover mechanisms required for uptime.

Reference Sources

IEEE – Institute of Electrical and Electronics Engineers – Standard for Ethernet and PTP

IEC – International Electrotechnical Commission – Industrial Communication Networks Standards

ISA – International Society of Automation – Best Practices for Industrial Networking
